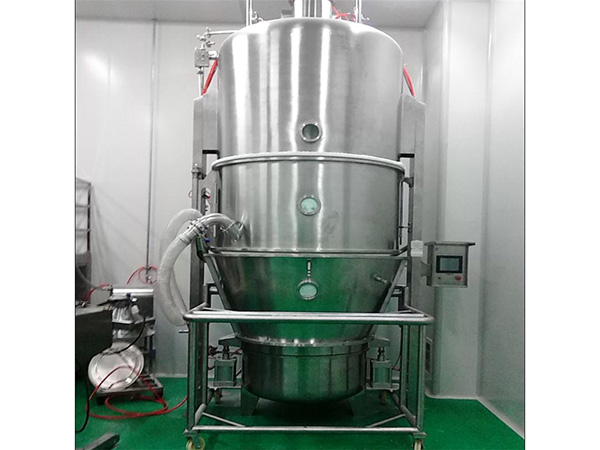

XLB旋转流化床制丸(粒)

XLB旋转流化床制丸(粒)

旋流流化床制粒包衣机是将流化床做成叶片式结构的流化床,并使叶片呈一定斜度,让气流从叶片的间隙通过,形成环流状的强大气流,使物料呈旋涡状似的有序运动,同时安装在侧壁的气动喷嘴将粘合剂或包衣液喷入呈旋涡状的物料层,从而将粉体制成颗粒或获得连续均匀的衣膜。

详细说明


应用概述 General of applications

★旋流流化床制粒包衣机是将流化床做成叶片式结构的流化床,并使叶片呈一定斜度,让气流从叶片的间隙通过,形成环流状的强大气流,使物料呈旋涡状似的有序运动,同时安装在侧壁的气动喷嘴将粘合剂或包衣液喷入呈旋涡状的物料层,从而将粉体制成颗粒或获得连续均匀的衣膜。

★其广泛用于粉体制粒和粉体、颗粒、丸的薄膜、肠溶、缓控释包衣,以及各种物料的掩味、防潮、防水、着色、隔热、隔离等包衣。

★LBF Turbojet fluid-bed granulator coater has vane-shape bottom of hopper which has a certain lean, let the air flow pass through the rift then form circle-shape strong air flow, it makes material rotate as regular turbojet movement. Meanwhile the pneumatic nozzle installed under left wall spray binder or coating liquid into turbojet material, in this way granulating or coating film can be obtained.

★It is widely used in coating of powder, granule, pellet, entericreleasing, slow and control releasing, and coating of taste masking, moisture-proof antioxidation, prevent water, heat insulation, coloration and separation etc.


设备特点 Features of equipment

★旋流驱动空气分配器,确保物料有序运动。

★旋流流态化,克服了沟流及死角现象。

★制得的颗粒多孔、速溶、真球度高、表面光泽度好、致密性强、不易破碎。

★吸潮性和流动性差的物料也能制成合格的颗粒。

★Rotational flow drives air distributor in order to guarantee that material can move in order.

★Fluidization of rotational flow, it overcomes channel flow and dead corner.

★The prepared granule is porous and can solve quickly, with high sphericity coefficient,good surface luster,certain intensity and is not easy to break.

★It can deal with low moisture-absorb and fluidity material to gain complete granule.


项目 ltem 规格 Specification

0.5

5

10

15

30

60

90

120

200

300

500

800-1000

投料量

Capacity

kg/批

kg/batch

0.5

5

10

15

30

60

90

120

200

300

500

按用户要求设计

By client

风机功率

Power of fan

kw

2.2

4

5.5

7.5

11

15

18.5

18.5

22

30

55

压缩空气

Compressed air

压强

Pressure

Mpa

0.6

耗量

Consumption

m3/min

0.45

0.6

0.6

0.6

0.6

0.9

1.1

1.3

1.8

2.4

3

蒸汽

Steam

压强

Pressure

Mpa

0.4-0.6

耗量

Consumption

Kg/h

6KW

9KW

53

71

95

143

167

183

343

381

450

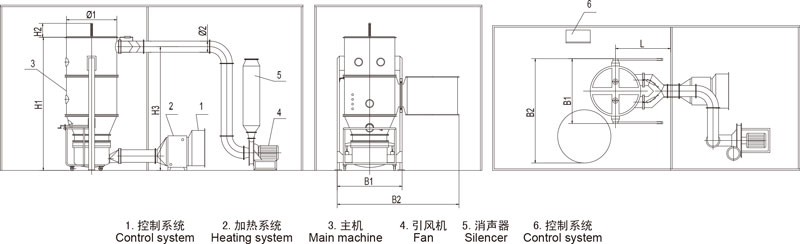

主机尺寸

Installation size for reference

H1(mm)

2600

2600

2300

2450

2450

3050

3050

3050

3500

3700

4050

H2(mm)



250

320

340

490

540

590

690

790

890

H3(mm)



2100

2250

2250

2850

2850

2850

3300

3500

3850

Ø1(mm)

300

550

550

650

700

1000

1100

1200

1400

1600

1800

Ø2(mm)

150

180

180

250

250

280

280

280

280

315

355

B1(mm)

1550

1650

1010

1110

1160

1460

1560

1660

1860

2060

2260

B2(mm)



1460

1760

1860

2460

2660

2860

3260

3660

4060

L(mm)


850

1100

1100

1250

1530

1530

1650

1650

1750

1850


所有参数仅作参考,视物料情况,本公司拥有变更权利,并不另行通知。

All datas are used for reference only. According to the condition of material, our factory has the right to change but not notice, pardon!
